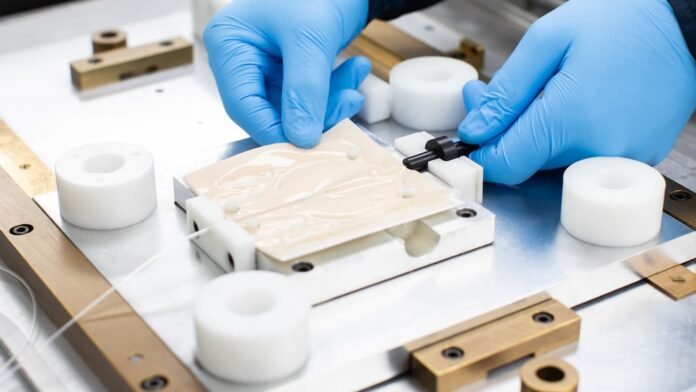

RF Welding in Medical Devices: In the medical device industry, radio frequency (RF) welding, commonly referred to as dielectric sealing, is a highly skilled production process.
This method creates a strong and waterproof connection by fusing materials with high-frequency electromagnetic energy. When it comes to manufacturing fluid bladders, medical bags, and other products that need a contamination-free barrier to stay functional and sterile, RF welding is especially helpful.
The design of the weld and the selection of materials have a significant impact on the final product’s safety and effectiveness in the fabrication of medical devices. Due to their electrical characteristics, thermoplastic materials, including PVC, EVA, and some polyurethanes, are usually suitable for RF welding.
Due to its accuracy and control, RF welding is the best method for creating strong seams and intricate forms, which are necessary for items that must adhere to tight regulations or undergo continuous stress.
Maintaining consistency in welding parameters such as power, pressure, and duration is crucial in order to uphold the welds’ quality. In addition, manufacturers have to comply with regulatory standards that specify how medical devices must be clean and biocompatible.
When producing life-saving medical devices, RF welding is a specialized yet essential technique due to the attention to these nuances.
The Evolution Of Entertainment: From Traditional Media To Digital Engagement Domains
The Basics of RF Welding
When joining thermoplastic components, radio frequency (RF) welding—also referred to as high frequency (HF) welding or dielectric sealing—is a well-established technique that is frequently used in the production of medical devices.
The reason this method is preferred is because it can create reliable, robust seals without the need of threads, adhesives, or solvents.
Radio Frequency Welding Fundamentals
The process of RF welding makes use of high-frequency electromagnetic energy to heat materials. Here’s a summary of how it functions:
-
-
The RF welding machine generates a magnetic field.
-
Welding with RF energy is only possible with thermoplastic materials that possess dielectric properties.
-
By exposing the dielectric material to RF energy, its polar molecules oscillate, generating heat through friction.
-
During material fusion, the generated heat softens and fused the material under pressure, resulting in a permanent bond.
-
Regulatory and quality considerations
RF welding must meet stringent quality and safety requirements in the manufacture of medical devices. Regulatory standards and industry best practices should be followed to ensure that the process produces consistent and reliable welds.
Strengthening and ensuring the integrity of the welds
-
In order to ensure strong and hermetic seals, manufacturers must select materials that are compatible with RF welding. In medical devices, polyvinyl chloride (PVC) and polyurethane (PU) are commonly welded plastics.
-
Validation of the RF welding process is crucial in order to demonstrate consistent weld quality. In order to accomplish this, the following steps can be taken:
-
The development of a weld protocol that defines parameters such as power, pressure, and time during the welding process.
-
Assessing the strength and integrity of seals by conducting destructive and non-destructive tests.
-
Compliance with Medical Standards
-
ISO 13485: Medical device manufacturers must adhere to ISO 13485 standards, which outline the requirements for a comprehensive quality management system.
-
Medical devices are regulated by the Food and Drug Administration (FDA) in the United States. Medical devices that are RF welded must comply with relevant FDA regulations, including:
-
The Quality System Regulation (QSR) is found in Title 21 CFR Part 820.
-
For electronic records and signatures, please refer to Title 21 CFR Part 11.
-
To demonstrate compliance with the aforementioned standards and regulations, manufacturers should maintain clear and auditable documentation of all processes and controls.
Challenges and Solutions
Medical devices are manufactured using radio frequency (RF) welding to ensure strong, reliable seams, such as IV bags and blood pressure cuffs. This process is not without its challenges, which often require precise troubleshooting and the integration of technological advancements to overcome.
Troubleshooting Common Issues
Professionals in the medical device manufacturing industry may encounter several common problems when it comes to RF welding. Typically, these include:
Inconsistent Seals: Variations in the thickness of the material or the calibration of the machine can result in seals that are either incomplete or overcompressed.
-
Solution: Regularly calibrate welding equipment and inspect material consistency to ensure seal integrity.
Arcing and Burning: RF welding relies on the precise control of energy. The weld point can be damaged if this control fails.
-
Solution: Arcing and burning can be prevented by regularly checking and maintaining electrodes, as well as by ensuring proper grounding and shielding.
Complex Geometries: Medical devices often have complex shapes, making uniform welding difficult.
-
Solution: Electrodes and fixtures designed to meet the specific geometry of the device can provide even pressure distribution and energy distribution.
Technology advancements and innovations in RF welding
Manufacturers are continually integrating new technologies to address existing challenges in the RF welding industry.
The Importance of Sleep: How Quality Rest Impacts Your Overall Health and Well-being
Automated Process Controls: Modern RF welders are equipped with advanced process controls that improve consistency and reduce the likelihood of human error.
-
Solution: Installing precision control systems capable of adjusting parameters in real-time for optimal weld quality.
Material Developments: New materials that are compatible with RF welding offer superior durability and weld strength.
-
Solution: By utilizing these new materials, we can overcome the limitations associated with conventional welding materials.
Sophisticated Monitoring Equipment: Modern monitoring systems are capable of detecting issues during the welding process.
-
-
Solution: By utilizing these systems, defects can be identified and rectified quickly, ensuring a higher level of quality control.
-
Conclusion
In the medical device business, radio frequency (RF) welding, also known as dielectric sealing, is a crucial manufacturing technology that unites materials using high-frequency electromagnetic energy. This procedure is essential for forming strong, airtight bindings in items that need to be clean and contamination-free, like fluid bladders and medical bags.
This technique is preferred when working with intricate geometries and making sure that equipment that are under to constant stress or have to adhere to strict regulations have sturdy seams.
For product efficacy and safety, material selection and weld design are essential. Because of their electrical qualities, thermoplastics including PVC, EVA, and some polyurethanes are excellent. Enforcing regulatory criteria and upholding uniform welding parameters are crucial for quality control. Unreliable sealing and arcing are problems for RF welding.
Nevertheless, new materials and technology assist address these problems, guaranteeing that the procedure is still essential for creating durable, dependable seams on life-saving medical equipment.
